Commercial Coffee Machine Installation Guide
A commercial espresso machine can arrive polished, powerful and ready to become the centrepiece of your coffee service. But without the right site preparation, even premium equipment can suffer from inconsistent extraction, avoidable faults and costly downtime. This commercial coffee machine installation guide covers the practical foundations that help your machine perform as intended from its first service.
For cafés, restaurants, offices and hospitality venues, installation is not simply a delivery-day task. It is a coordinated process involving your machine supplier, electrician, plumber, water-filtration provider and, ideally, the technician who will commission the equipment. Getting those details right protects your investment and gives your team the best possible platform for coffee excellence.
Start with the machine and your expected service volume
Installation requirements depend heavily on the machine you have chosen. A compact single-group machine in a boutique office has very different demands from a three-group espresso machine serving a busy breakfast rush. Before arranging trades, confirm the machine’s technical specifications, including its electrical load, inlet-water requirements, waste connection, bench dimensions and clearance needs.
Think beyond the number of cups you expect to serve on an average day. Peak periods matter more. A venue producing 40 coffees over two hours needs enough boiler capacity, group heads and steam power to keep workflow moving. Installing an undersized machine may save space initially, but it can create queues, rushed baristas and inconsistent milk texture when demand rises.
Your grinder also deserves the same planning. Position it close enough to the espresso machine for an efficient workflow, with adequate bench space for dosing, tamping and a knock box. In a high-volume venue, two grinders are often worthwhile: one for house espresso and one for decaf or a rotating single origin. This keeps service moving and gives customers genuine choice.
Prepare the bench, space and workflow
Commercial machines are heavy, particularly once boilers are full. Your bench must be level, stable and capable of supporting the machine’s operating weight over time. Check the manufacturer’s dimensions rather than estimating from photos, and allow space at the rear and sides for hoses, cables, ventilation and technician access.
A machine pushed tightly against a wall may look neat, yet it can make servicing unnecessarily difficult. You also need practical access for daily cleaning. Baristas should be able to remove drip trays, clean group heads and refill any required consumables without shifting equipment or working awkwardly around fixtures.
Counter height influences staff comfort as well. An espresso machine that sits too high can make tamping and milk steaming tiring across a full shift. If you are designing a new coffee bar, map the workflow from grinder to machine to milk fridge, then through to the pass. A few centimetres and a sensible sequence can make a noticeable difference during busy service.
Electrical requirements need a licensed professional
Commercial coffee machines require dedicated electrical planning. Depending on the model, the machine may use a standard 10-amp outlet, a 15-amp circuit, single-phase power or three-phase power. Never assume the plug type tells the whole story. Confirm the machine’s voltage, amperage and phase requirements from the supplier documentation before electrical work begins.
An appropriately licensed electrician should assess the site load and install the correct dedicated circuit, isolation and protection in line with Australian standards and local requirements. Avoid running a commercial machine through power boards, extension leads or shared circuits with high-draw appliances such as dishwashers, ovens or refrigeration.
Grinders, filtration pumps, under-bench refrigeration and point-of-sale equipment also add to the overall load. Planning the entire coffee station at once prevents the frustrating scenario where the espresso machine is ready but the circuit trips as soon as the grinder and milk fridge are operating together.
Water quality is part of the installation
Water makes up the vast majority of an espresso, so it has a direct effect on flavour. It also has a major impact on the life of your equipment. Australian water quality varies significantly by location, and untreated water can introduce scale, corrosion or excessive mineral content that damages internal components and affects temperature stability.
A commercial-grade filtration system should be selected for your local water conditions, machine volume and manufacturer requirements. In many cases, this involves a sediment pre-filter and a cartridge designed to manage hardness and chlorine. The ideal solution depends on a water test, not guesswork. Water that is too hard can create limescale, while water that is overly softened or aggressively treated may also be unsuitable for certain boilers and components.
Install filtration where staff or technicians can access it easily for scheduled cartridge changes. Record the installation date, cartridge capacity and replacement interval. A filter left unchanged well beyond its service life can be almost as problematic as having no filter at all.

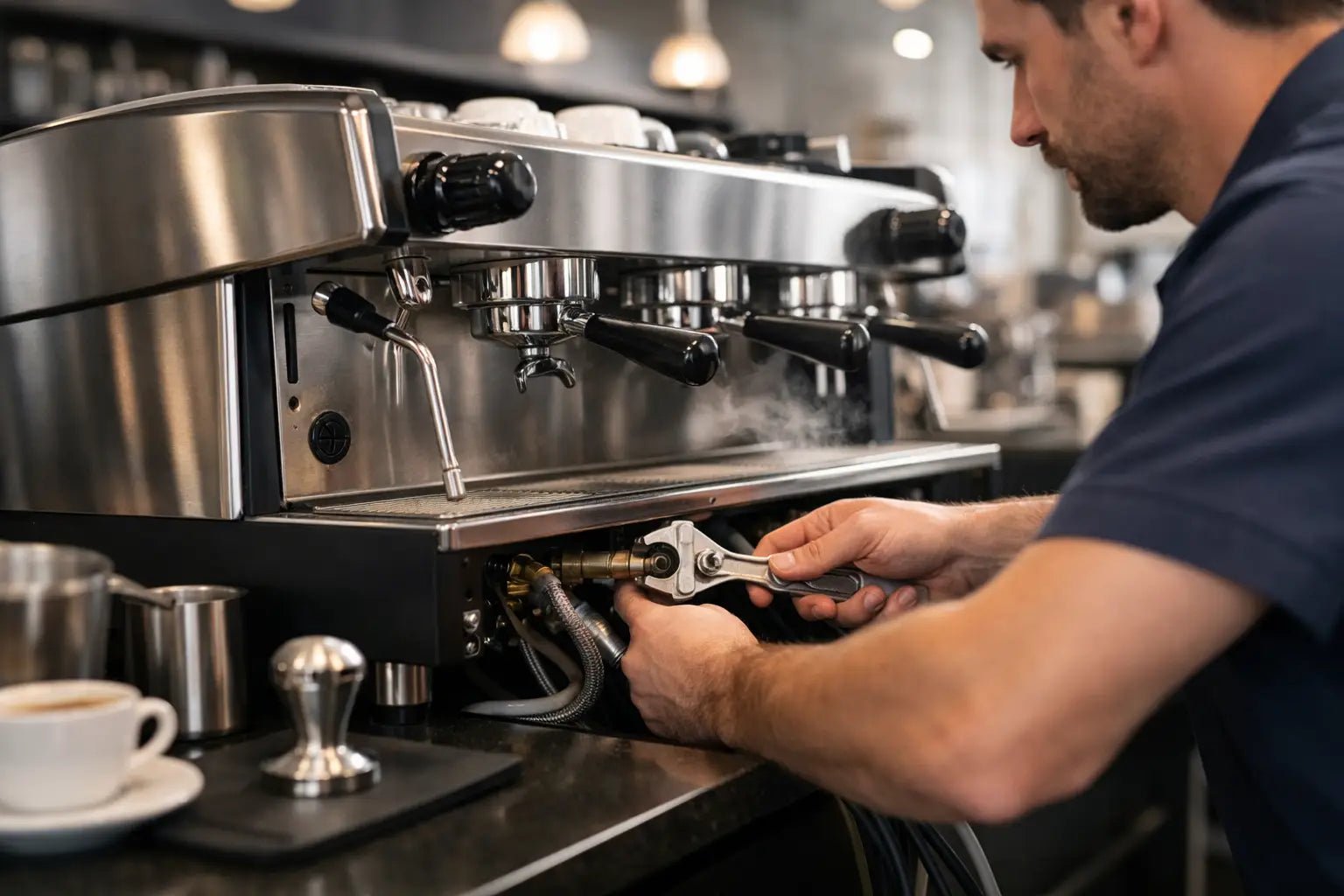

Plan the water supply and drainage properly
Most commercial espresso machines are plumbed directly to a cold-water supply through a pressure-limiting valve and filtration system. Water pressure must sit within the machine manufacturer’s specified range. Excessive pressure can place strain on valves and fittings, while low pressure may affect boiler filling and performance.
A licensed plumber should fit the required shut-off valve in an accessible location. This is a small detail with real value: if a leak occurs or servicing is required, staff need to be able to isolate the machine quickly without shutting down water to the entire venue.
Drainage is equally important. Many commercial machines use a waste hose that runs to a trapped drain point, carrying away water from the drip tray and, in some configurations, the pressure-relief system. The drain hose needs the correct fall and routing to avoid standing water, unpleasant odours or backflow. Do not kink, crush or loosely coil the hose beneath the bench simply to keep it out of sight.
Some lower-volume machines can operate with a manual waste tray, but this is rarely ideal in a busy café. Emptying trays during service creates interruptions and increases the risk of spills. If you are investing in a plumbed machine, proper drainage is usually the more efficient long-term choice.
Commissioning turns installation into a working coffee station
Once power, water, filtration and drainage are in place, the machine should be commissioned by a qualified technician or authorised service provider. Commissioning is more than switching it on. It verifies that the equipment has been installed safely, reaches operating temperature, fills correctly, drains correctly and is free from leaks.
The technician should also check key operating settings such as pump pressure, boiler pressure or temperature, and water flow. On machines with programmable doses, this is the time to set a sensible starting point for your cups and baskets. These settings will still need refinement once you begin dialling in your coffee, but a correct technical baseline matters.
Before opening for service, run water through the new filter as required, flush the group heads, inspect all connections and test the steam wands. It is also sensible to check that staff know where the power isolation point and water shut-off valve are located.
Complete the setup with grinder calibration and staff training
A perfectly installed machine cannot compensate for a poorly calibrated grinder. Once the machine has stabilised at operating temperature, dial in the coffee using your chosen dose, yield and extraction time. Record the recipe so staff have a clear reference point at the start of each shift.
Training should cover more than making a good flat white. Staff need to understand daily backflushing, steam-wand cleaning, purging, basket care, grinder cleaning and what to do if they see a leak or hear an unfamiliar noise. Good habits reduce call-outs and protect coffee quality.
A practical handover should include the machine manual, warranty details, service contact information and a cleaning schedule. Keep these close to the coffee station rather than filed away in an office where they will be forgotten during a busy morning.
Avoid the installation mistakes that cause downtime
Most installation problems are preventable. The common causes are inadequate filtration, an incorrect electrical circuit, inaccessible shut-off points, poor drainage routing and insufficient clearance for service work. Another frequent issue is rushing the process to meet an opening date, then discovering the bench cut-out, power outlet or water connection is in the wrong place.
Where possible, share your machine specifications with the relevant trades before equipment arrives. For Adelaide businesses, Prestige Coffee can help clarify what your selected machine requires and support you with knowledgeable advice before commissioning day. That preparation is particularly valuable when fitting out a new venue or replacing an older machine with a higher-capacity model.
Your installation should make daily coffee service easier, not create another task for your team to manage. Give the machine clean, correctly treated water, stable power, practical drainage and room to be maintained. From there, skilled baristas and fresh coffee can do what they do best: give every customer a reason to come back tomorrow.
